EPE. Foam. Sponge Vacuum Forming Whole Plant Equip

Manually new configuration features

Font Size: [Big][Mid][Small] 2013-8-23  Views: 607

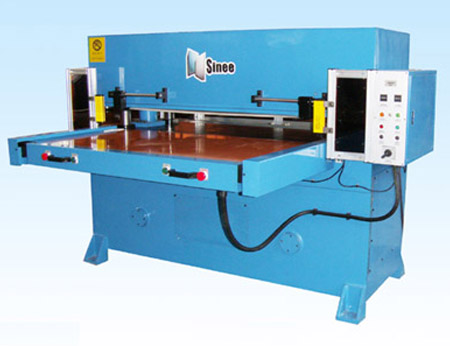

Product description:
Manually old configuration features
1, double cylinder column automatic balance rod mechanism, so finding the area of ​​cutting uniform
2, two-stage cut under way, an effective solution to cutting pearl cotton, sponge curvature problems, while cutting multilayer material, the layers can reduce the size of the error
3, in the cutting food box, electronic tray products can reduce the cutting board powder stick on the box of the phenomenon
4, in the cut plastic and other materials, eco-friendly materials OPS.PET.ABS.PS continuously or when there will be no cutting edge feathering, tool steel plate when cutting and long tool life

型号
Model
压  力
Cutting force
张距
Open daylight
机床尺寸
Machine bed
净   重
Net weight




宽度
Width
深度
Depth


DC-25
25T
60-240mm
125/1470/1600mm
500mm
1900kg/1900kg

DC-30
30T
60-240mm
125/1470/1600mm
650mm
2000kg/2400kg

DC-40
40T
60-240
125/1470/1600mm
650mm
2100kg/2500kg

Note: The depth of 650mm dual link above, special specifications can be customized according to customer requirements
