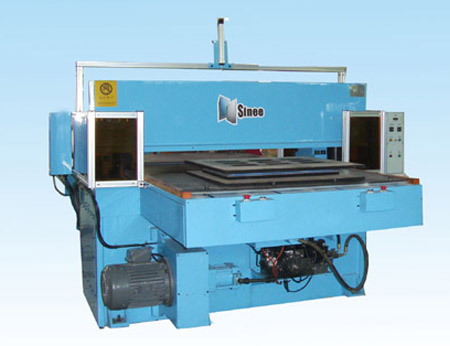

EPE. Foam. Sponge Vacuum Forming Whole Plant Equip

New features automatic configuration

Font Size: [Big][Mid][Small] 2013-8-23  Views: 581

Product description:
New features automatic configuration
1, PLC control system to reduce the aging failure relay
2, the latest digital stroke control theory, reduce the damage to the switch generates too much pressure, causing damage to the tool
3, double cylinder column automatic balance rod mechanism, so finding the area of ​​cutting uniform
4, automatic feeding arm with hydraulic feeding device, so that the right bit more accurate, faster
5, bilateral independently set feeding mechanism, both sides at the same time different heights die cutting, improve work efficiency,
6, aluminum frame guards, automatic lubrication mechanism
7, using high-pressure pump mode, quieter, longer life, electrical components are imported brands
8, two-stage cut under way, an effective solution to cutting pearl cotton, sponge curvature problems, while cutting multilayer material, the layers can reduce the size of the error
9, in the cutting food box, electronic tray products can reduce the cutting board and powder stick on the box of the phenomenon
10, in the Conference plastic materials such as eco-friendly materials OPS.PET.ABS.PS continuously or when there will be no cutting edge feathering, tool steel plate when cutting and long tool life
11, optional PP-board micro-movement device, greatly reducing the consumption of PP

型号
Model
压  力
Cutting force
张距
Open daylight
机床尺寸
Machine bed
净   重
Net weight




宽度
Width
深度
Depth


DC-40
40T
60-240mm
125/1470/1600mm
800mm
3000kg/4000kg

DC-60
60T
50-230mm
125/1470/1600mm
800mm
4800kg/5500kg

DC-100
100T
50-230
125/1470/1600mm
800mm
5500kg/6000kg

Note: The depth of 650mm dual link above, special specifications can be customized according to customer requirements
